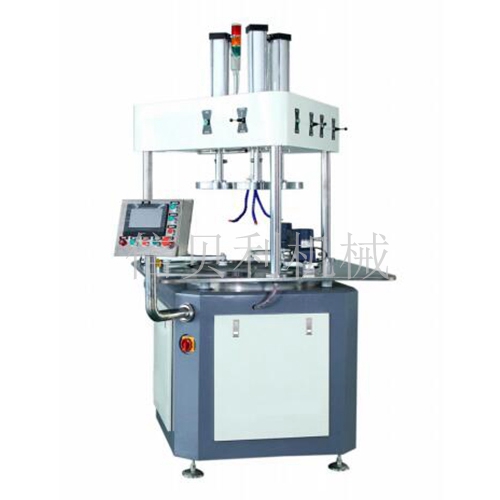

1、广泛用于LED蓝宝石衬底、光学晶体材料、五金零件、模具、导光板、阀片、液压密封件、不锈钢等各种材料的单面研磨
2、主轴采用机械式的上下移动。
3、采用齿轮传动,在调速电机的驱动下,通过行星轮的转动从而带动太阳轮,实现公转和自转。
4、适用于对研磨精度要求高的平面。
1.Widely used in single-side grinding of LED sapphire substrates,optical crystal materials,hardware parts,dies,light guide plates,valves,hydraulic seals,stainless steel and other materials.
2.The spindle is moved up and down mechanically.
3.The sun wheel is driven by gear drive and driven by speed regulating motor through the rotation of planetary wheel to realize rotation and rotation.
4.Suitable for planes requiring high grinding accuracy
1、设备占地面积:1632*1166*2048mm;
2、设备总重:1450MM
3、电机规格:主轴电机功率2.2KW,修面电机功率0.2kw/380v3相/50Hz
4、主动轴*1,升降立柱*3;
1.Coverage of equipment:1632*1166*2048mm
2.Total equipment weight:1450kg
3.Motor Specification:spindle motor power 2.2KW,dressing motor power 0.2kw/380v3 phase/50Hz
4.Active Axis*1,Lifting Column*3
