全自动机械手圆盘抛光机ST-6094

您的当前位置: 首 页 >> 产品中心 >> 机械手系列

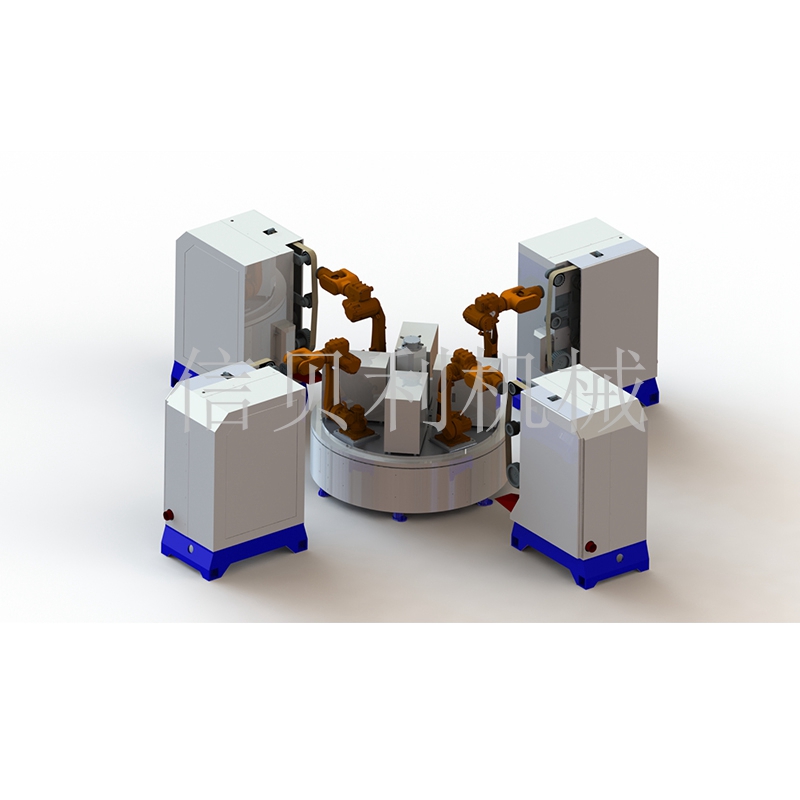

全自动机械手圆盘抛光机ST-6094

  • 所属分类:机械手系列

  • 点击次数:
  • 发布日期:2019/08/30
  • 在线询价
  • 详细介绍

设备占地面积:5800*5800*2000mm;

设备总重:约6500kg;

电机规格:圆盘公转电机:2.2KW;立柱主电机:5.5KW;立柱前后电机:0.75KW;

40kg机械手功率:约6KW;

圆盘直径1.8米,40kg机械手*4;

M20立柱*4;

胶轮规格:直径?100-?350mm;宽度1″-3″;

耗材规格:长162″,宽1″-3″;

适用耗材:砂带、消音轮。

工作线速度:20m/s;


Equipment area: 5800*5800*2000mm;

Total weight of equipment: about 6500kg;

Motor specifications: disc revolution motor: 2.2KW; column main motor: 5.5KW; column front and rear motor: 0.75KW;

40kg robot power: about 6KW;

Disc diameter 1.8 meters, 40kg robot *4;

M20 column *4;

Rubber wheel specifications: diameter ?100-?350mm; width 1′′-3′′;

Consumables specifications: length 162", width 1"-3";

Applicable consumables: abrasive belt, silencer wheel.

Working line speed: 20m/s;


机械手圆盘配合M20砂带立柱由全自动伺服操作系统控制,每个机械手可经过四道工序,实现不同精细度加工;

M20砂带立柱可实现自动调整砂带与工件接触深度,确保达到加工效果;

M20砂带立柱可自动纠正砂带偏移;

圆盘上放置四台机械手,大幅减少占用空间的情况下大大提升设备的效率;

可根据不同的工件需求利用胶轮的不同部位或不同的胶轮进行加工,也可在胶轮上进行仿形;可加工平面、弧面、接缝位等;

适用于各种中高产量的形状各异、多个弧面连接的卫浴五金件等。


The manipulator disc and the M20 sanding belt column are controlled by a fully automatic servo operating system. Each robot can go through four processes to achieve different fineness processing;

M20 sand belt column can automatically adjust the contact depth between the belt and the workpiece to ensure the processing effect;

M20 sand belt column can automatically correct the belt offset;

Four robots are placed on the disc to greatly reduce the efficiency of the equipment when the space is greatly reduced;

It can be processed by different parts of the rubber wheel or different rubber wheels according to different workpiece requirements, or it can be profiled on the rubber wheel; it can process plane, arc surface, seam position, etc.

Applicable to all kinds of medium and high-volume bathroom hardware with different shapes and multiple curved surfaces.
